In the fast-paced service industry, efficient queue management and real-time communication are critical. Whether it’s a bustling restaurant, a busy fitness center, or a clinic relying on a token system, the hardware driving these processes needs to be reliable, compact, and highly connected.
For this project, I engineered a custom Internet of Things (IoT) hardware solution designed specifically to handle real-time bookings, reservation tracking, and instant notification dispatching. At the heart of this board is the highly efficient ESP32-C3 microcontroller.
The Core Objective The goal was to design a versatile, small-form-factor PCB capable of maintaining a persistent internet connection to sync with cloud-based reservation platforms. It needed to be cost-effective for mass deployment while retaining enough processing power to handle secure network protocols and drive external displays or alerts.

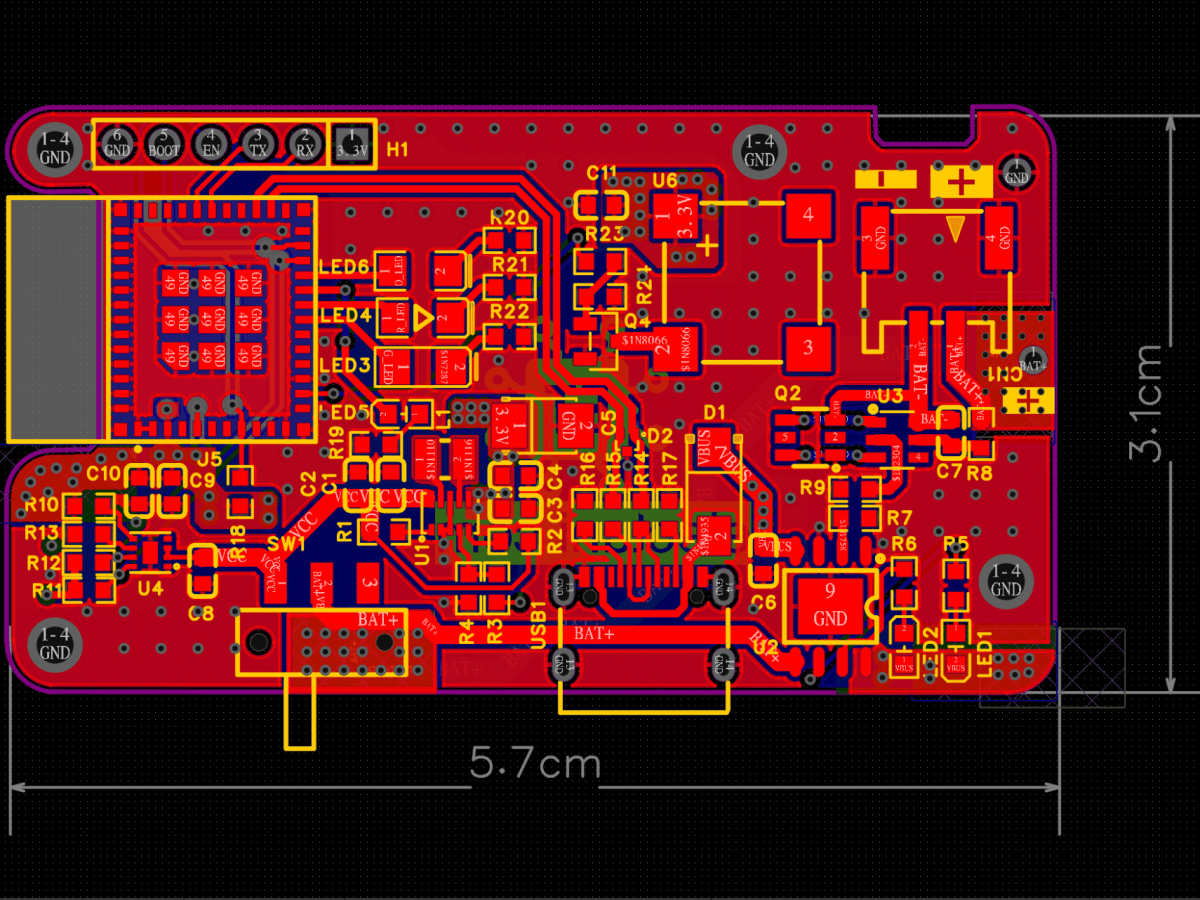

Hardware Overview & Key Features This custom PCB was designed with both functionality and physical footprint in mind. Key highlights of the board include:
ESP32-C3 Module: The brain of the operation. The ESP32-C3 provides robust Wi-Fi and Bluetooth LE 5.0 connectivity. Its RISC-V core is power-efficient yet more than capable of handling real-time WebSocket connections or REST API calls to backend booking servers.
Modern USB-C Interface: Included for reliable power delivery, seamless serial programming, and debugging.
Flexible Power Management: The board integrates efficient voltage regulation to handle varying input loads, ensuring stable operation during continuous 24/7 uptime.
Onboard Status Indicators: Integrated LEDs provide immediate visual feedback for network status, power, and active notification triggers, making on-site troubleshooting straightforward.
Expansion Ready: The top pin header (H1) allows for easy interfacing with external peripherals, such as larger token display screens, thermal printers, or audio buzzers for notification alerts.
Real-World Applications Because of its flexible design, this board serves as the foundational hardware for multiple service-oriented systems:
Restaurant Reservation Systems: The board can act as a bridge between the host's tablet and table-side pagers, or directly control a "Now Serving" display, updating in real-time as tables clear.
Gym Access & Booking: Can be integrated into turnstiles or front-desk check-in points to instantly verify class bookings or membership status via Wi-Fi.
Digital Token & Queue Management: Perfect for clinics, banks, or government offices. The board fetches the current token number from the database and drives the overhead LED matrix or segmented displays to call the next customer.
Conclusion This ESP32-C3 board demonstrates the power of custom embedded engineering to solve specific, real-world business bottlenecks. By moving away from off-the-shelf development boards and designing a purpose-built PCB, the final product is more secure, occupies a fraction of the space, and is optimized perfectly for IoT queue and reservation management.
