Industrial Multi-Channel Power Controller Board | Fused Output Distribution | DC/DC Regulated | Version 1
Description

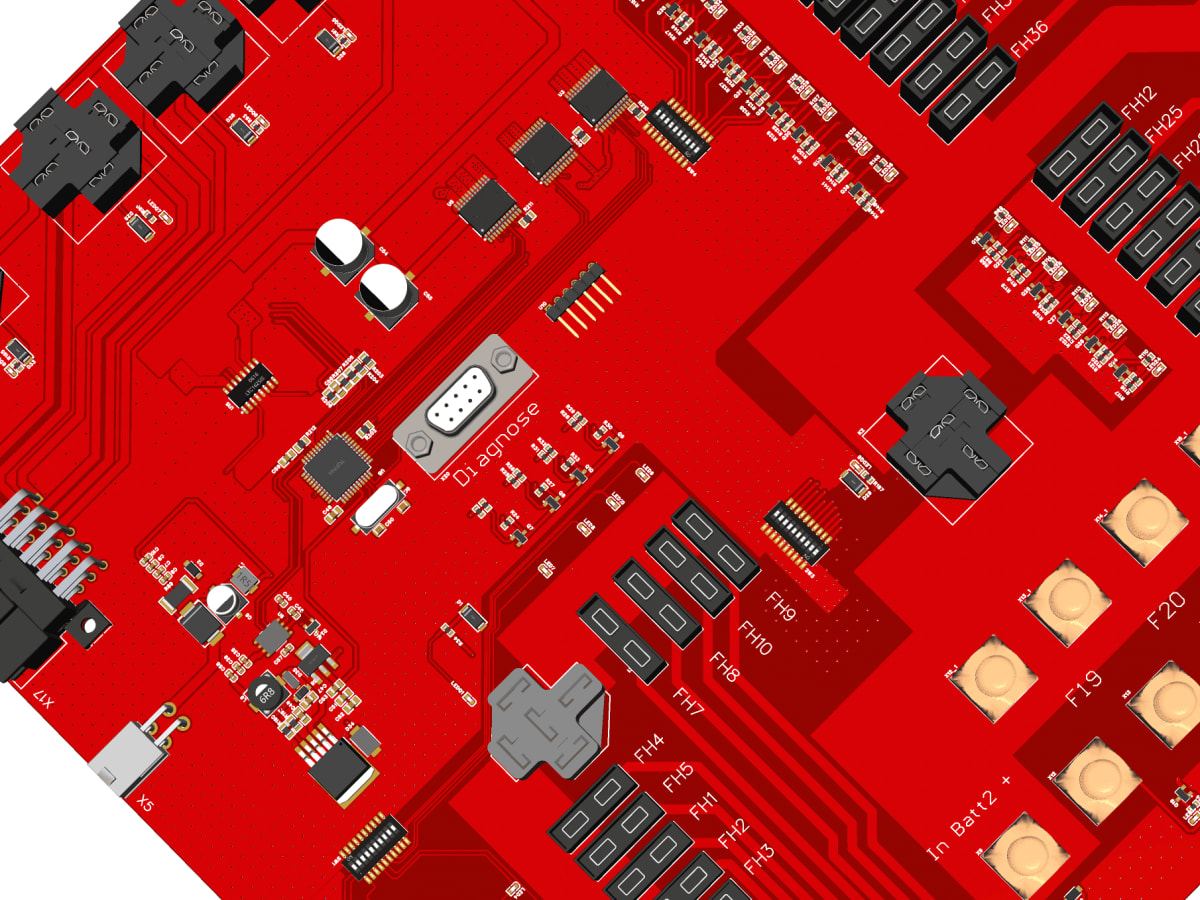

Custom-designed industrial-grade multi-channel power controller board engineered for robust DC load management and power distribution in demanding environments. This large-format red solder mask PCB features an extensive array of fused high-current output channels (F1–F23+), dual battery input support (Batt1+, In Batt2+), and on-board DC/DC conversion — delivering reliable, protected power to dozens of downstream loads simultaneously.
The board integrates a microcontroller-based control system with a dedicated diagnostic header for real-time system monitoring, fault detection, and field debugging. Over 40+ individually addressed output connectors (FH1–FH49) provide flexible wiring to relays, solenoids, actuators, sensors, and other industrial peripherals. Multiple automotive/industrial-grade blade fuses protect each output channel against overcurrent and short-circuit faults.
Inferred Specifications
| Parameter | Detail |
|---|---|
| Input Voltage | Dual battery input (estimated 12V–48V DC range) |
| Power Regulation | On-board DC/DC converter module with IN GND / DC/DC F references |
| Output Channels | 40+ fused outputs via Molex/JST-style headers (FH1–FH49) |
| Fuse Protection | Automotive blade fuses (F11, F12, F19–F23 + additional) |
| Controller | Microcontroller (likely STM32 or similar ARM Cortex-M, QFP package visible) |
| Communication | Diagnostic port (likely UART/CAN), USB connector, pin headers for I2C/SPI |
| Switching | On-board relay(s) and/or MOSFET high-side drivers for load control |
| Connectors | High-current screw/blade terminals (X1–X4), Molex-style multi-pin headers |
| Board Dimensions | Large form factor (~200mm × 150mm estimated) |
| PCB Layers | Multi-layer (estimated 4-layer) with heavy copper for power planes |
| Solder Mask | Red, industrial-grade finish |
| Mounting | 4-corner mounting holes for DIN-rail or panel enclosure mounting |
| Version | Version 1 (silkscreen marked) |
Key Features
- Dual Battery Input — supports redundant or load-sharing power configurations (Batt1+, In Batt2+)
- 40+ Fused Output Channels — individually protected distribution to FH1–FH49 output headers
- On-Board DC/DC Conversion — regulated secondary rails for logic, sensors, and low-power peripherals
- Blade Fuse Array — field-replaceable automotive-style fuses for rapid maintenance
- Diagnostic Interface — dedicated diagnostic header and USB port for configuration, logging, and fault readout
- Microcontroller Intelligence — programmable load sequencing, overcurrent monitoring, and fault management
- Heavy-Duty Connectors — high-current input/output terminals rated for industrial wiring
- Scalable I/O Architecture — modular header layout supports application-specific wiring harnesses
Applications
- Industrial machinery power distribution & load management
- Vehicle / fleet electrical system controllers (trucks, agricultural, marine)
- Building automation & HVAC power distribution panels
- Renewable energy system load controllers
- Telecom & server rack DC power distribution
- Factory automation relay & actuator driver boards
- Railway & transportation auxiliary power systems
- Mining & heavy equipment electrical control units
Designed & Engineered by Circuit-Board-Design — Custom Industrial Electronics, Power Systems & PCB Design
